Description

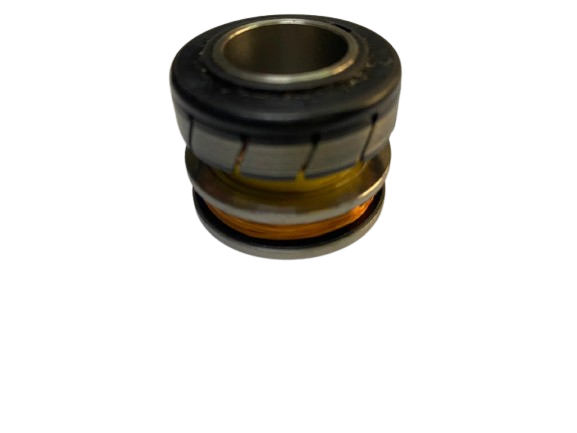

The BE239133 Load Cell – Tension Sensor is an essential component in Picanol weaving machines, responsible for precisely measuring warp tension to ensure consistent fabric quality and reduced defects. This strain gauge-based sensor provides real-time feedback to the machine’s control system, enabling automatic tension adjustments for smooth and uniform weaving.

Manufactured with high-strength stainless steel and corrosion-resistant materials, the sensor withstands harsh textile production environments, ensuring long-lasting accuracy and reliability. Its compact and lightweight design allows easy integration into the existing weaving setup, enhancing overall machine performance and fabric consistency.

Technical Specifications:

• Model: BE239133

• Sensor Type: Strain gauge-based load cell

• Measurement Range: Optimized for precise warp tension control

• Material: High-strength stainless steel with corrosion resistance

• Output Signal: Analog voltage or current output

• Accuracy: High-sensitivity with minimal deviation

• Temperature Range: -10°C to 80°C

• Mounting Type: Direct fit for Picanol weaving machines

• Durability: Long operational life with minimal calibration requirements

Compatibility:

✔ Compatible with Picanol Weaving Machines, including:

• Picanol OmniPlus Series

• Picanol GTMax

• Picanol Summum

• Other Picanol models utilizing load cell-based tension control systems

Applications:

✔ Warp Tension Control in Weaving Machines – Ensures consistent and stable fabric production.
✔ Textile Manufacturing – Reduces defects by maintaining precise yarn tension.
✔ Industrial Weaving Operations – Enhances efficiency and improves fabric uniformity.

Designed for precision, durability, and seamless machine integration, the BE239133 Load Cell – Tension Sensor is an essential component that ensures warp tension stability, leading to higher productivity and superior fabric quality.
